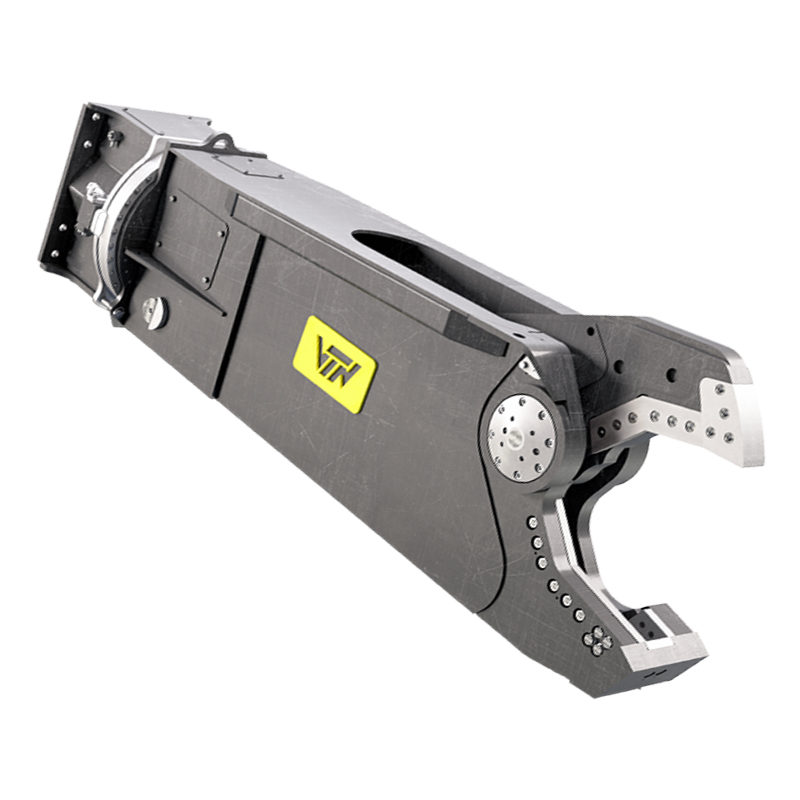

VTN CI-R Series Scrap Shears

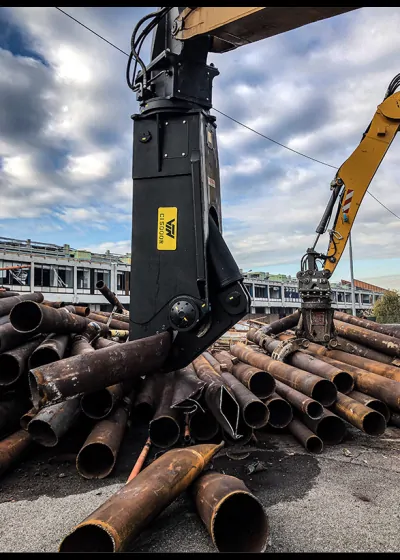

The VTN CI-R series scrap shears for excavators are designed for cutting steel structures or recycling plates and cables on demolition and scrapyard sites. The bolt-on piercing tip of the nose blade minimizes damage risk and reduces welding work.

The shear is made of high-quality steel, resulting in significant weight reduction. The cutting blades are reversible, allowing them to be rotated up to four times before needing replacement. The VTN CI scrap shear is available for excavators weighing between 1.5 and 120+ tons, depending on attachment to the dipper stick or main boom.

Are you looking for a scrap shear for excavators? Below you will find our selection, making it easy to compare and ensure you find the right attachment for your project! Prefer personal advice? Contact us or fill out the quote form!

Characteristics

360-degree rotation for optimal positioning.
SHRINK-FIT system ensures optimal jaw alignment.
Speed valve for faster cycle times (starting from the CI 2000)

CI 310

Technische gegevens
Machine Class, Mounted on Bucket place	3 - 5 t
Machine Class, Mounted on Stick place	1,5 - 3,5 t
Cutting Force, Jaw Tip	28 t
Oil Flow	60 - 100 l/min
Working Pressure	250 bar
Rotation	360
Max Working Pressure	250 bar
Operating Weight	315 kg
Jaw Opening	275 mm
Jaw Length	210 mm

CI 450

Technische gegevens
Machine Class, Mounted on Bucket place	5 - 8 t
Machine Class, Mounted on Stick place	3 - 5 t
Cutting Force, Jaw Tip	32 t
Oil Flow	70 - 110 l/min
Working Pressure	250 bar
Rotation	360
Max Working Pressure	250 bar
Operating Weight	480 kg
Jaw Opening	350 mm
Jaw Length	348 mm

CI 700

Technische gegevens
Machine Class, Mounted on Bucket place	8 - 13 t
Machine Class, Mounted on Stick place	6 - 8 t
Cutting Force, Jaw Tip	60 t
Oil Flow	90 - 140 l/min
Working Pressure	350 bar
Rotation	360
Max Working Pressure	350 bar
Operating Weight	795 kg
Jaw Opening	415 mm
Jaw Length	348 mm

CI 1200

Technische gegevens
Machine Class, Mounted on Bucket place	13 - 19 t
Machine Class, Mounted on Stick place	9 - 13 t
Cutting Force, Jaw Tip	61 t
Oil Flow	150 - 250 l/min
Working Pressure	350 bar
Rotation	360
Max Working Pressure	350 bar
Operating Weight	1320 kg
Jaw Opening	450 mm
Jaw Length	481 mm

CI 1800

Technische gegevens
Machine Class, Mounted on Bucket place	19 - 24 t
Machine Class, Mounted on Stick place	13 - 20 t
Cutting Force, Jaw Tip	85 t
Oil Flow	180 - 250 l/min
Working Pressure	350 bar
Rotation	360
Max Working Pressure	350 bar
Operating Weight	1850 kg
Jaw Opening	503 mm
Jaw Length	500 mm

CI 2500R

Technische gegevens
Machine Class, Mounted on Bucket place	25 - 30 t
Machine Class, Mounted on Stick place	16 - 24 t
Cutting Force, Jaw Tip	118 t
Oil Flow	200 - 300 l/min
Working Pressure	350 bar
Rotation	360
Max Working Pressure	350 bar
Operating Weight	2500 kg
Jaw Opening	540 mm
Jaw Length	525 mm

CI 3200R

Technische gegevens
Machine Class, Mounted on Bucket place	28 - 37 t
Machine Class, Mounted on Stick place	22 - 28 t
Cutting Force, Jaw Tip	146 t
Oil Flow	280 - 350 l/min
Working Pressure	350 bar
Rotation	360
Max Working Pressure	350 bar
Operating Weight	3260 kg
Jaw Opening	575 mm
Jaw Length	606 mm

CI 4000R

Technische gegevens
Machine Class, Mounted on Bucket place	36 - 43 t
Machine Class, Mounted on Stick place	28 - 45 t
Cutting Force, Jaw Tip	165 t
Oil Flow	300 - 450 l/min
Working Pressure	350 bar
Rotation	360
Max Working Pressure	350 bar
Operating Weight	4170 kg
Jaw Opening	670 mm
Jaw Length	710 mm

CI 5000R

Technische gegevens
Machine Class, Mounted on Bucket place	40 - 53 t
Machine Class, Mounted on Stick place	34 - 45 t
Cutting Force, Jaw Tip	195 t
Oil Flow	350 - 500 l/min
Working Pressure	350 bar
Rotation	360
Max Working Pressure	350 bar
Operating Weight	5100 kg
Jaw Opening	740 mm
Jaw Length	720 mm

CI 6500R

Technische gegevens
Machine Class, Mounted on Bucket place	53 - 74 t
Machine Class, Mounted on Stick place	45 - 55 t
Cutting Force, Jaw Tip	220 t
Oil Flow	400 - 600 l/min
Working Pressure	350 bar
Rotation	360
Max Working Pressure	350 bar
Operating Weight	6850 kg
Jaw Opening	830 mm
Jaw Length	852 mm

CI 8000R

Technische gegevens
Machine Class, Mounted on Bucket place	74 - 105 t
Machine Class, Mounted on Stick place	55 - 75 t
Cutting Force, Jaw Tip	240 t
Oil Flow	500 - 800 l/min
Working Pressure	350 bar
Rotation	360
Max Working Pressure	350 bar
Operating Weight	8100 kg
Jaw Opening	870 mm
Jaw Length	944 mm

CI 10000R

Technische gegevens
Machine Class, Mounted on Bucket place	85+ t
Machine Class, Mounted on Stick place	60+ t
Cutting Force, Jaw Tip	280 t
Oil Flow	700 - 1000 l/min
Working Pressure	350 bar
Rotation	360
Max Working Pressure	350 bar
Operating Weight	10330 kg
Jaw Opening	1005 mm
Jaw Length	1072 mm

CI 15000R

Technische gegevens
Machine Class, Mounted on Bucket place	120+ t
Machine Class, Mounted on Stick place	80+ t
Cutting Force, Jaw Tip	355 t
Oil Flow	900 - 1200 l/min
Working Pressure	350 bar
Rotation	360
Max Working Pressure	350 bar
Operating Weight	14650 kg
Jaw Opening	1145 mm
Jaw Length	1270 mm

CI 20000R

Technische gegevens
Machine Class, Mounted on Bucket place	170+ t
Machine Class, Mounted on Stick place	110+ t
Cutting Force, Jaw Tip	460 t
Oil Flow	1000 - 1500 l/min
Working Pressure	350 bar
Rotation	360
Max Working Pressure	350 bar
Operating Weight	20900 kg
Jaw Opening	1225 mm
Jaw Length	1300 mm
